Marusugi Corporation

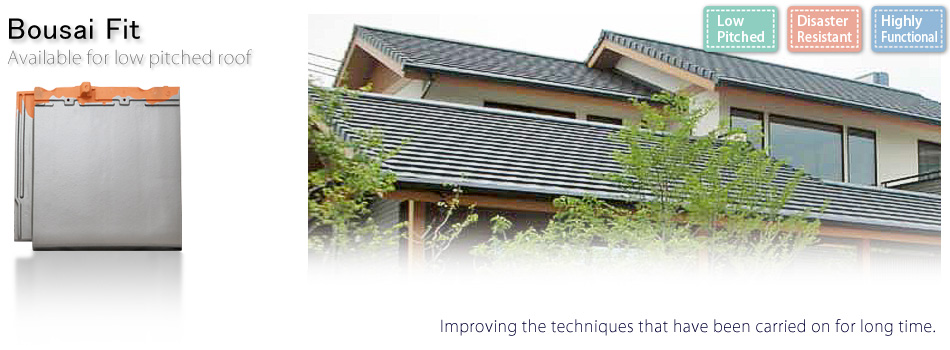

Japanese roof tiles and Western roof tiles. Highly functional Sanshu-Kawara.




Replacement products are available from other companies as well.The profile gives a sharp line to your roof.
*Bousai Fit roof tiles meet the standard of *CJK products, which was established by Construction Material for Long-term Use Standardization Promotion Council in Japan, as construction materials that are easy to find replacement parts for long time.
* "Bousai" means "disaster resistant".
* CJK products are construction materials that are compatible with similar products of other companies. It means you can get replacements even if the original products are not produced any longer.




Silver Black

Straight Black

Matte Brown

Subaru




Flat Hip

Gable with Main Tile

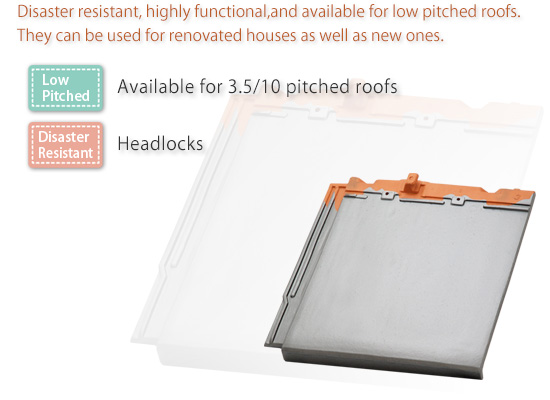

(1) Headlocks
The headlocks of the lower tiles and the pockets of the upper tiles lock to keep the tiles secure.
(2) Water Channels
The water channels on the sides of the tiles prevent rainwater infiltration when there is a strong storm.

Length 350mm
Width 347mm
Exposed Length 280mm(250-285mm)
Exposed Width 306mm
Weight 3.7kg/piece (44.4kg/m2)
Pieces per1m2 12 pieces

Roof pitch and roof length
Roof Pitch 3.5/10 4.0/10 4.5/10 5.0/10 5.5/10
Roof Length 8m 10m 12m 15m 17m


Leaflet
